LAMP1抗体 [GT25212]

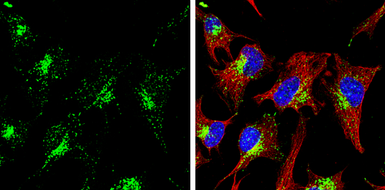

LAMP1 antibody [GT25212] detects LAMP1 protein at lysosome by immunofluorescent analysis.
Sample: HeLa cells were fixed in ice-cold MeOH for 5 min.
Green: LAMP1 stained by LAMP1 antibody [GT25212] (GTX634336) diluted at 1:2000.
Red: alpha Tubulin 4a, a cytoskeleton marker, stained by alpha Tubulin 4a antibody (GTX112141) diluted at 1:500.
Blue: Hoechst 33342 staining.

Wild-type (WT) and LAMP1 knockout (KO) HeLa cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with LAMP1 antibody [GT25212] (GTX634336) diluted at 1:10000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

HeLa whole cell and membrane extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membranes were blotted with LAMP1 antibody [GT25212] (GTX634336) diluted at 1:1000 and competitor's antibody diluted at 1:1000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody. (WCE: whole cell extract; ME: membrane extract)

*The competitor is not affiliated with GeneTex and does not endorse this product.

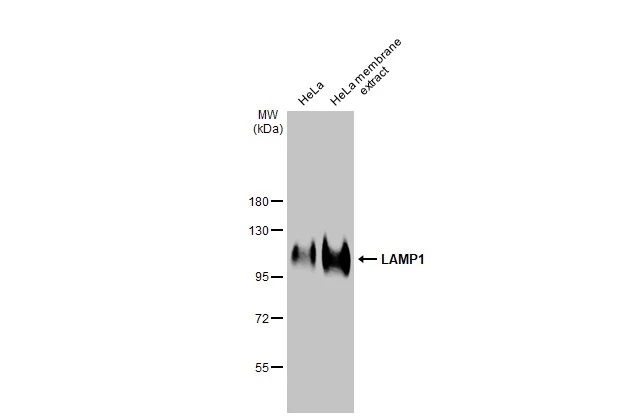

HeLa whole cell and membrane extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with LAMP1 antibody [GT25212] (GTX634336) diluted at 1:1000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.
