Zika virus Envelope protein抗体

Non-infected (–) and infected (+) C6/36 whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Zika virus Envelope protein antibody (GTX133326) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Non-transfected (–) and transfected (+) 293T whole cell extracts (60 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Zika virus Envelope protein antibody (GTX133326) diluted at 1:3000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Sandwich ELISA detection of non-transfected and transfected 293T whole cell extracts using GTX634155 as capture antibody at concentration of 5 μg/mL and GTX133326 as detection antibody at concentration of 1 μg/mL. Rabbit IgG antibody (HRP) (GTX213110-01) was diluted at 1:10000 and used to detect the primary antibody.

Sandwich ELISA detection of non-transfected and transfected 293T whole cell extracts using GTX133326 as capture antibody at concentration of 5 μg/mL and GTX634157 as detection antibody at concentration of 1 μg/mL. Mouse IgG antibody (HRP) (GTX213111-01) was diluted at 1:10000 and used to detect the primary antibody.

Sandwich ELISA detection of non-transfected and transfected 293T whole cell extracts using GTX634157 as capture antibody at concentration of 5 μg/mL and GTX133326 as detection antibody at concentration of 1 μg/mL. Rabbit IgG antibody (HRP) (GTX213110-01) was diluted at 1:10000 and used to detect the primary antibody.

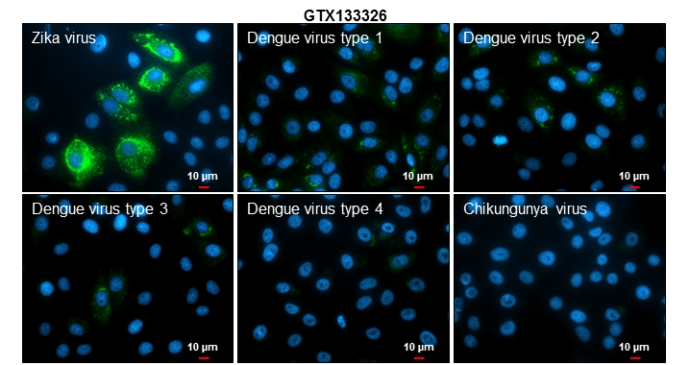

Immunofluorescent analysis of arboviruses infected cells using Zika virus Envelope protein antibody (GTX133326).
Samples: EUROIMMUN Arboviral Fever Mosaic 2 slide (FR 2668-1010-1).
Green: Zika virus Envelope protein antibody (GTX133326) diluted at 1:500.
Blue: Hoechst 33342 staining.
Scale bar = 10 μm.

Sandwich ELISA detection of Zika virus-infected lysate using GTX634155 as capture antibody at concentration of 5 μg/mL and GTX133326 as detection antibody at concentration of 1 μg/mL. Rabbit IgG antibody (HRP) (GTX213110-01) was diluted at 1:10000 and used to detect the primary antibody.

Sandwich ELISA detection of non-transfected and transfected 293T whole cell extracts using GTX133326 as capture antibody at concentration of 5 μg/mL and GTX634155 as detection antibody at concentration of 1 μg/mL. Mouse IgG antibody (HRP) (GTX213111-01) was diluted at 1:10000 and used to detect the primary antibody.

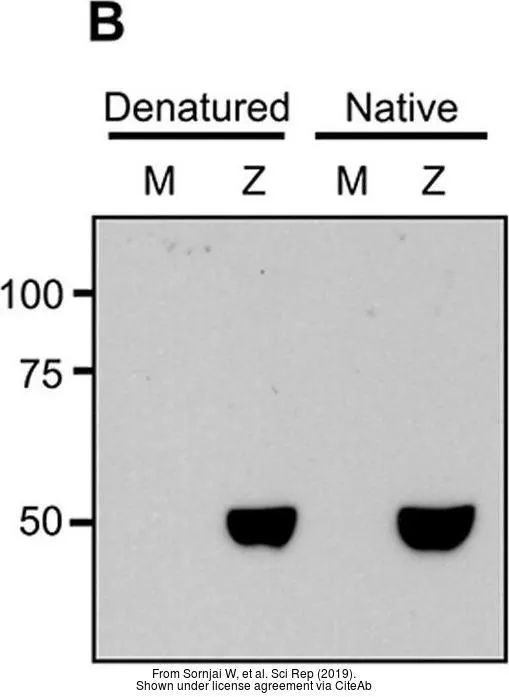

The data was published in the 2019 in Sci Rep. PMID: 31534148

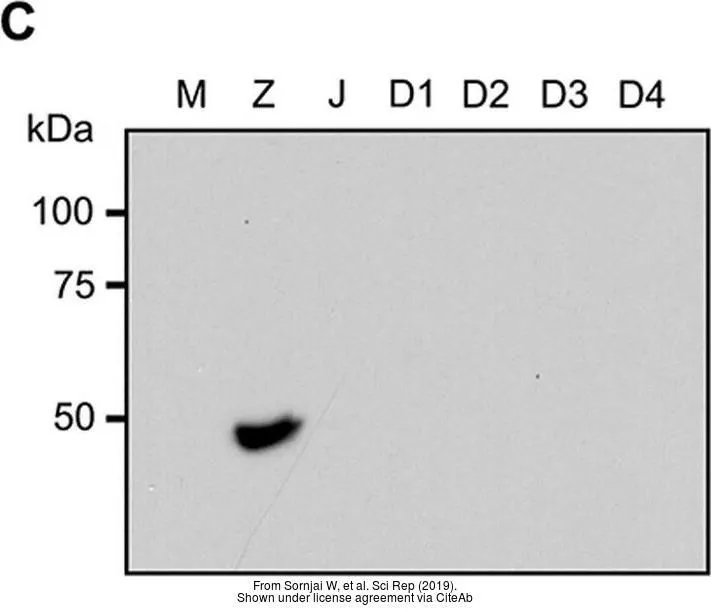

The data was published in the 2019 in Sci Rep. PMID: 31534148
